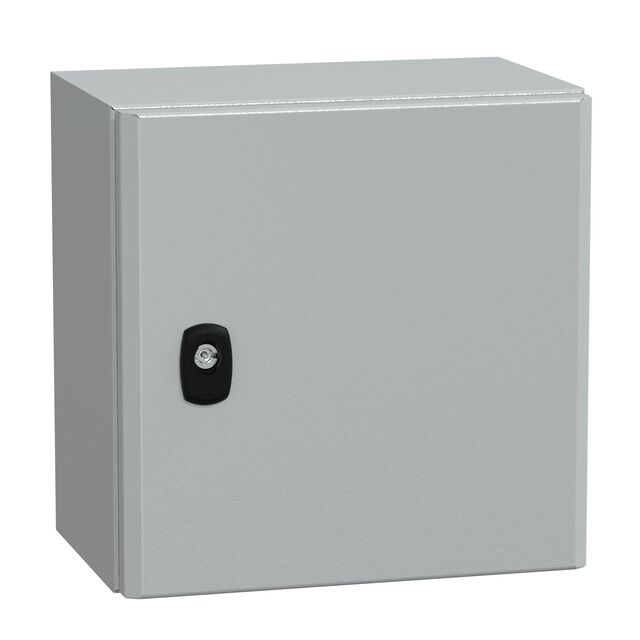

Spacial S3D Wall Boxes with Chassis Plate The Schneider Electric Spacial S3D steel wall mounting enclosure is made up of a one-piece folded and welded body with a double plate thickness gutter shaped front profile. The Spacial S3D series has perforated rails on door, with drilled diameter of 4.2 mm on 25 mm pitch: (enclosures from an External Height of 400 mm have 2 vertical rails and enclosures from External Width of 800 mm have 2 horizontal and vertical rails). Features and Benefits IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water and heavy seas External mechanical impact resistance of IK10 (protected against a 5kg object dropped from 20cm) Cable gland plate with grid pattern to facilitate drilling and assure maximum access supplied High UV resistance Aluminium hinge pins Door can be removed and reversed to open left or right Door can be opened up to 120° Wall mounting brackets are fixed from the outside Double thickness 20mm return fold doors for excellent rigidity Polyurethane door seal The handle supplied has two functions as operating key and as tool for removal of stud protective caps NSYS3D3320P Wall Box What are the external dimensions? NSYS3D3320P has external dimensions of 300 x 300 x 200 mm. What type of lock does it have? The enclosure has a 3mm double-bar lock. What is supplied? The NSYS3D3320P is supplied with a single piece body, plain front face door, cable gland plate and a 3mm double-bar lock. Can the wall box be used outside? The NSYS3D3320P an Ingress Protection rating of IP66 so can be used inside or outside. Standards Compliance with enclosure standards IEC 62208, UL, CUL, BV, DNV and GL.
