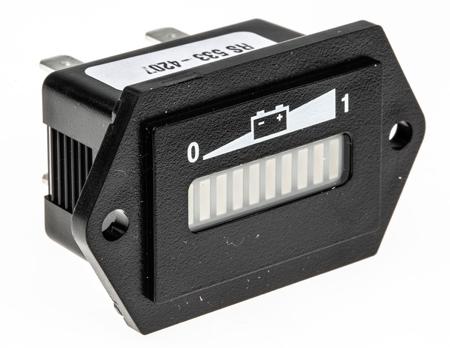

Model 906 LED Battery Status Meter Solid-state, compact one-piece unit 10 bar LED display Single flashing LED signal for low battery energy reserve alert at 70% discharge Alternate flashing LEDs alert for battery empty status at 80% discharge Two reset methods: Open Circuit Reset (OCR) – upon reconnection to battery when cell voltage ≥2.09V; High Voltage Reset (HVR) – when unit measures 2.35V/cell for 6 continuous minutes 4.8mm tab terminals Used typically in small electric motors Applications: Golf cars Commercial cleaning equipment Mobility aids Electric bicycles Electric marine motors Medical devices
