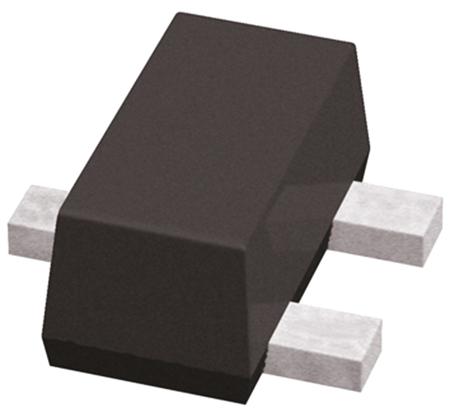

nzl6v8axv3t1g onsemi NZL6V8AXV3T1G, Dual-Element Uni-Directional ESD Protection Diode, 73W, 3-Pin SOT-523
nzl6v8axv3t1g onsemi NZL6V8AXV3T1G, Dual-Element Uni-Directional ESD Protection Diode, 73W, 3-Pin SOT-523

onsemi NZL6V8AXV3T1G, Dual-Element Uni-Directional ESD Protection Diode, 73W, 3-Pin SOT-523

onsemi NZL6V8AXV3T1G, Dual-Element Uni-Directional ESD Protection Diode, 73W, 3-Pin SOT-523

Manufacturer:
onsemi
Manufacturer Part No:
NZL6V8AXV3T1G
Enrgtech Part No:
ET100331458
Warranty:
Manufacturer
$ 0.28 $ 0.28
Checking for live stock
Diode Configuration:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=84087&DisplayLogo=False
Direction Type:
Uni-Directional
Maximum Clamping Voltage:
11.9V
Minimum Breakdown Voltage:
6.46V
Mounting Type:
Surface Mount
Package Type:
SOT-523 (SC-89)
Maximum Reverse Stand-off Voltage:
4.5V
Pin Count:
3
Peak Pulse Power Dissipation:
73W
Maximum Peak Pulse Current:
6.7A
ESD Protection:
Yes
Number of Elements per Chip:
2
Minimum Operating Temperature:
-55 °C
Dimensions:
1.7 x 0.95 x 0.8mm
Maximum Operating Temperature:
+150 °C
Width:
0.95mm
Height:
0.8mm
Capacitance:
45pF
Length:
1.7mm
Test Current:
5mA
Maximum Reverse Leakage Current:
1µA
pdf icon
0900766b81250b94.pdf(datasheets)
pdf icon
0900766b81644fb9.pdf(datasheets)
Find TVS diodes at Enrgtech for reliable circuit protection. Shop unidirectional and bidirectional suppressors for safeguarding electronics from voltage spikes and surges.
