Logic Family:
CML, HSTL, LVCMOS, LVDS, LVPECL, LVTTL
Mounting Type:
Surface Mount
Number of Elements per Chip:
3

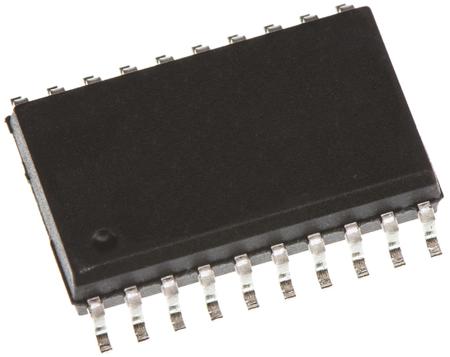

Package Type:
SOIC
Pin Count:
20
Output Type:
NECL
Dimensions:
12.95 x 7.6 x 2.4mm
Logic Function:
Voltage Translator
Translation:
CML to NECL, HSTL to NECL, LVCMOS to NECL, LVDS to NECL, LVPECL to NECL, LVTTL to NECL
Maximum Propagation Delay Time @ Maximum CL:
650 (Differential) ps, 750 (Single Ended) ps
Maximum Operating Supply Voltage:
3.8 V
Maximum Operating Temperature:
+85 °C
Minimum Operating Supply Voltage:
2.37 V
Minimum Operating Temperature:
-40 °C
