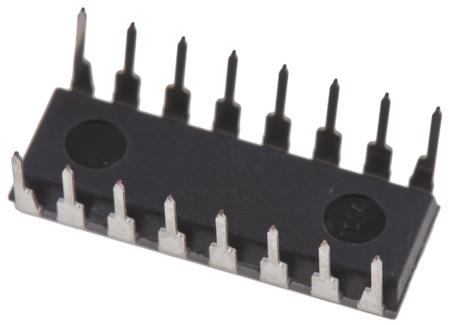

Texas Instruments CD4504BE, Voltage Level Shifter Voltage Level Shifter CMOS, TTL to CMOS, 16-Pin PDIP

Texas Instruments CD4504BE, Voltage Level Shifter Voltage Level Shifter CMOS, TTL to CMOS, 16-Pin PDIP

Manufacturer:

Manufacturer Part No:

CD4504BE

Enrgtech Part No:

ET100474037

Warranty:

Manufacturer

$ 0.63

Checking for live stock

Logic Family:

4000

Mounting Type:

Through Hole

Package Type:

PDIP

Pin Count:

Logic Function:

Voltage Level Shifter

Dimensions:

10 x 5 x 10.5mm

Maximum Low Level Output Current:

4.2mA

Maximum High Level Output Current:

-4.2mA

Translation:

CMOS, TTL to CMOS

Maximum Operating Supply Voltage:

18 V

Maximum Propagation Delay Time @ Maximum CL:

550 ns @ 15 V

Maximum Operating Temperature:

+125 °C

0900766b81644fcb.pdf(datasheets)
