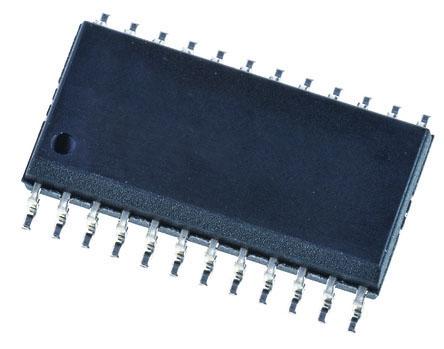

Texas Instruments SN74LVC8T245DWR, Voltage Level Translator Bus Transceiver 1, 24-Pin SOIC

Texas Instruments SN74LVC8T245DWR, Voltage Level Translator Bus Transceiver 1, 24-Pin SOIC

Manufacturer:

Manufacturer Part No:

SN74LVC8T245DWR

Enrgtech Part No:

ET100181644

Warranty:

Manufacturer

$ 1.79

Checking for live stock

Logic Family:

LVC

Mounting Type:

Surface Mount

Package Type:

SOIC

Number of Elements per Chip:

Output Type:

3 State

Pin Count:

Dimensions:

15.6 x 7.6 x 2.35mm

Logic Function:

Bus Transceiver

Maximum Low Level Output Current:

32mA

Maximum High Level Output Current:

3.2 x 1.6 x 1mm

Propagation Delay Test Condition:

15pF

Maximum Operating Supply Voltage:

5.5 V

0900766b81644fcb.pdf(datasheets)
