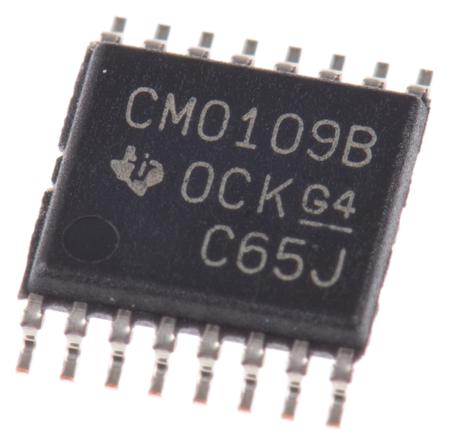

Texas Instruments CD40109BPW, Voltage Level Shifter Voltage Level Shifter, 16-Pin TSSOP

Texas Instruments CD40109BPW, Voltage Level Shifter Voltage Level Shifter, 16-Pin TSSOP

Manufacturer:

Manufacturer Part No:

CD40109BPW

Enrgtech Part No:

ET100152075

Warranty:

Manufacturer

$ 2.96

Checking for live stock

Logic Family:

4000

Mounting Type:

Surface Mount

Package Type:

TSSOP

Pin Count:

Output Type:

3 State

Logic Function:

Voltage Level Shifter

Dimensions:

5 x 4.4 x 1.15mm

Maximum Low Level Output Current:

4.2mA

Maximum High Level Output Current:

-4.2mA

Maximum Propagation Delay Time @ Maximum CL:

600 ns @ 10 V

Maximum Operating Supply Voltage:

18 V

Maximum Operating Temperature:

+125 °C

0900766b81644fcb.pdf(datasheets)
