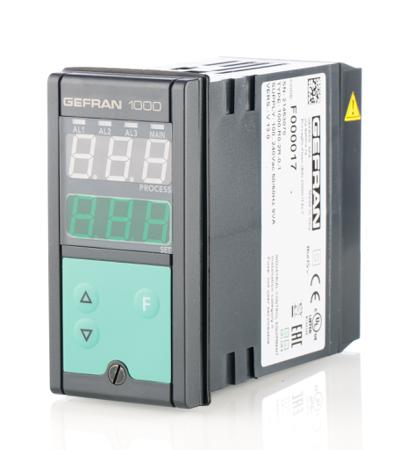

1000-r0-2r-0-1 Gefran 1000 PID Temperature Controller, 48 x 96 (1/8 DIN)mm, 1 Output Logic, Relay
1000-r0-2r-0-1 Gefran 1000 PID Temperature Controller, 48 x 96 (1/8 DIN)mm, 1 Output Logic, Relay
1000-r0-2r-0-1 Gefran 1000 PID Temperature Controller, 48 x 96 (1/8 DIN)mm, 1 Output Logic, Relay
1000-r0-2r-0-1 Gefran 1000 PID Temperature Controller, 48 x 96 (1/8 DIN)mm, 1 Output Logic, Relay

Gefran 1000 & 1001 Series Gefran 1000 & 1001 series of Microprocessor Controllers support thermocouple configuration via the faceplate. This series of Microprocessor Controllers are equipped with a Lexan© membrane faceplate to provide a frontal IP54 rating. Function block formatting allows for simplified parameter programming 48 x 96 (1/8 DIN) & 96 x96 (1/4 DIN) formats available, see 1000 series for 1/8 DIN & 1001 series for 1/4 DIN Option to offset input signal Logic main, relay & mA main output Up to 3 configurable alarms Short circuit & open circuit probe alert Supports self-tuning, soft-start & bumpless manual / auto transfer Relay (5A at 250 Vac / 30 Vdc) & static (24 Vdc ± 10%) outputs available Gefran Series 400, 600, 650, 1000, 1200 & 1250

RoHs Compliant

Gefran 1000 PID Temperature Controller, 48 x 96 (1/8 DIN)mm, 1 Output Logic, Relay

Manufacturer:
Gefran
Manufacturer Part No:
1000-R0-2R-0-1
Enrgtech Part No:
ET13983921
Warranty:
Manufacturer
$ 1132.83
Checking for live stock
Number of Outputs:
1
Display Type:
LED
Display Colour:
Green
Minimum Operating Temperature:
0°C
IP Rating:
IP54
Series:
1000
Panel Depth:
100mm
Output Type:
Logic, Relay
Range:
Gefran 1000
Supply Voltage:
100 → 240 V ac/dc
Additional Functionality:
ON/OFF
Temperature Range:
0 → +800 (Type J Thermocouple) °C, 0 → +999 (Type K Thermocouple) °C, 0 → +999 (Type N Thermocouple) °C, 0 → +999 (Type R Thermocouple) °C, 0 → +999 (Type S Thermocouple) °C, -100 → +400 (Type T Thermocouple) °C, -19.9 → +99.9 (RTD 2/3-Wires - PT100) °C, -199 → +400 (RTD 2/3-Wires - PT100) °C
Maximum Operating Temperature:
+50°C
Size:
48 x 96 (1/8 DIN)mm
pdf icon
1000 / 1001 / 1101 datasheet(Technical Reference)
pdf icon
1000 / 1001 / 1101 Instruction Manual(Technical Reference)
