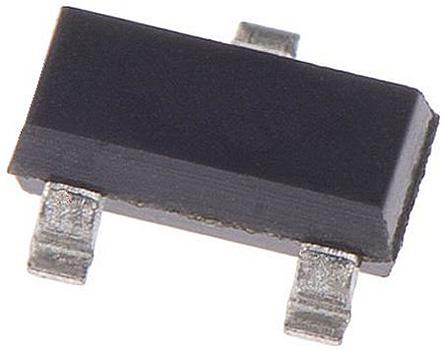

Vishay Dual Switching Diode, Common Anode, 250mA 70V, 3-Pin SOT-23 BAW56-E3-08

Manufacturer:

Manufacturer Part No:

BAW56-E3-08

Enrgtech Part No:

ET100504263

Warranty:

Manufacturer

$ 0.07

Checking for live stock

Diode Configuration:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=84087&DisplayLogo=False

Maximum Forward Current:

250mA

Mounting Type:

Surface Mount

Number of Elements per Chip:

Maximum Reverse Voltage:

70V

Package Type:

SOT-23

Diode Technology:

Silicon Junction

Maximum Forward Voltage Drop:

1.25V

Pin Count:

Minimum Operating Temperature:

-65 °C

Maximum Operating Temperature:

+150 °C

Length:

3.1mm
