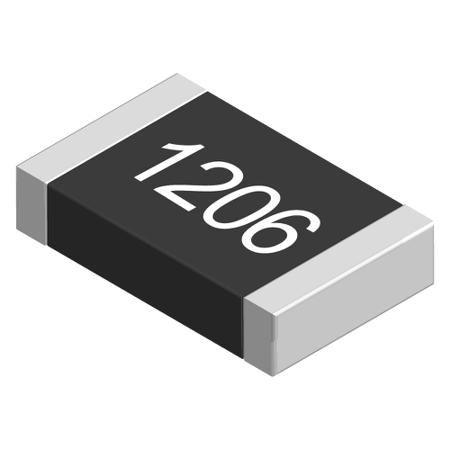

Resistance:
100mΩ
Technology:
Thick Film
Package/Case:
1206 (3216M)
Tolerance:
±5%
Power Rating:
1W
Temperature Coefficient:
±100ppm/°C
Automotive Standard:
AEC-Q200
Series:
ERJ8BW
Minimum Operating Temperature:
-55°C
Maximum Operating Temperature:
+155°C
Multimeter Type:
Handheld
Display Type:
Digital
Model Number p:
BK2707B
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Resistance
Calibrated:
UKAS
Absolute Maximum Resistance Measurement:
2GΩ
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum AC Voltage Measurement:
750V ac
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum Capacitance Measurement:
20µF
True RMS:
Yes
Maximum Frequency:
500Hz
AC Current Measurement Resolution:
10µA ac
DC Current Measurement Resolution:
10µA dc
AC Voltage Measurement Resolution:
0.1mV ac
Resistance Measurement Resolution:
100mΩ
DC Voltage Measurement Resolution:
0.1mV dc
Safety Category Level:
CAT II, CAT III
Capacitance Measurement Resolution:
1pF
Dimensions:
78 x 42.5 x 165mm
Best Capacitance Measurement Accuracy:
±4% +10 Digits
Best Resistance Measurement Accuracy:
±5% + 10 Digits
Best AC Voltage Accuracy:
±2% + 8 Digits
Length:
78mm
Best AC Current Accuracy:
±3.5% + 8 Digits
Width:
42.5mm
Minimum Operating Temperature:
0°C
Height:
165mm
Best DC Voltage Accuracy:
±0.8% + 1 Digits
Weight:
285g
Best DC Current Accuracy:
±3.5% + 3 Digits
Safety Category Voltage:
600 V, 750 V, 1000V
Battery Type:
9V
Maximum Operating Temperature:
+50°C
