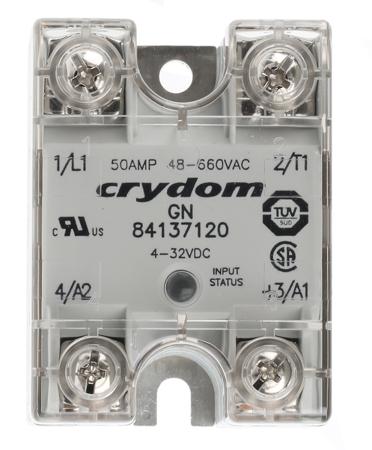

84137120 Sensata Crydom 8413 Series Solid State Relay, 50 A rms Load, Panel Mount, 660 V ac Load, 32 V dc Control
84137120 Sensata Crydom 8413 Series Solid State Relay, 50 A rms Load, Panel Mount, 660 V ac Load, 32 V dc Control
84137120 Sensata Crydom 8413 Series Solid State Relay, 50 A rms Load, Panel Mount, 660 V ac Load, 32 V dc Control
84137120 Sensata Crydom 8413 Series Solid State Relay, 50 A rms Load, Panel Mount, 660 V ac Load, 32 V dc Control

Sensata Crydom 8413 Series Solid State Relay, 50 A rms Load, Panel Mount, 660 V ac Load, 32 V dc Control

Sensata / Crydom 84137120 Sensata Crydom 8413 Series Solid State Relay, 50 A rms Load, Panel Mount, 660 V ac Load, 32 V dc Control

Manufacturer:
Sensata / Crydom
Manufacturer Part No:
84137120
Enrgtech Part No:
ET16682934
Warranty:
Manufacturer
$ 112.86 $ 112.86
Checking for live stock
Maximum Load Current:
50 A rms
Mounting Type:
Panel Mount
Maximum Load Voltage:
660 V ac
Minimum Load Voltage:
48 V ac
Minimum Control Voltage:
3 V dc
Maximum Control Voltage:
32 V dc
Switching Type:
Zero Cross
Control Voltage Range:
3 → 32 V dc
Range:
Easy Pick
Minimum Load Current:
100mA rms
Number of Poles:
1
Terminal Type:
Screw
Output Device:
SCR
Relay Type:
Solid State Relay
Load Voltage Range:
48 → 660V ac
Maximum Turn On Time:
1/2 cycle + 1 ms
Series:
8413
Dimensions:
44.5 x 57.3 x 30.9mm
Special Features:
Improved SEMS Screw & Washer, IP20, LED Input Status Indicator, Redesigned Housing with Anti-Rotation Barriers
Off State Leakage Current:
0.25mArms
Length:
44.5mm
Operating Temperature Range:
-40 → +80°C
Maximum Operating Temperature:
+80°C
Capacitance:
8pF
Standards Met:
CE, CSA LR 38595, cULus Recognised E79183, EMC Compliant, EN 60950-1, EN 62314:2006, IEC, IEC 61000-4-2, IEC 61000-4-4, TUV, UL
Minimum Operating Temperature:
-40°C
Depth:
57.3mm
Height:
30.9mm
pdf icon
0900766b8168d28c.pdf(datasheets)
pdf icon
A700000008258246.pdf(datasheets)
pdf icon
A700000013885275.pdf(datasheets)
