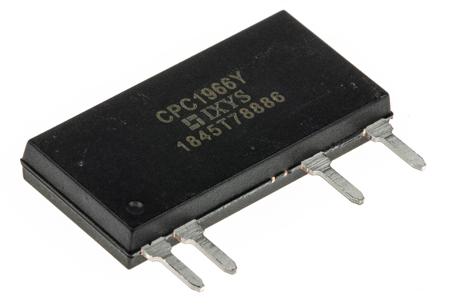

cpc1966y IXYS Solid State Relay, 3 A rms Load, PCB Mount, 240 V ac Load, 1.4 V Control
cpc1966y IXYS Solid State Relay, 3 A rms Load, PCB Mount, 240 V ac Load, 1.4 V Control
cpc1966y IXYS Solid State Relay, 3 A rms Load, PCB Mount, 240 V ac Load, 1.4 V Control
cpc1966y IXYS Solid State Relay, 3 A rms Load, PCB Mount, 240 V ac Load, 1.4 V Control

IXYS Solid State Relay, 3 A rms Load, PCB Mount, 240 V ac Load, 1.4 V Control

IXYS Solid State Relay, 3 A rms Load, PCB Mount, 240 V ac Load, 1.4 V Control

Manufacturer:
IXYS
Manufacturer Part No:
CPC1966Y
Enrgtech Part No:
ET14131897
Warranty:
Manufacturer
$ 5.61 $ 5.61
Checking for live stock
Maximum Load Current:
3 A rms
Mounting Type:
PCB Mount
Maximum Load Voltage:
240 V ac
Minimum Load Voltage:
20 V ac
Minimum Control Voltage:
0.9 V
Maximum Control Voltage:
9mV
Switching Type:
Zero Cross
Control Voltage Range:
20 → 240 V rms
Minimum Load Current:
0.1 A rms
Number of Poles:
1
Terminal Type:
PCB Pin
Contact Configuration:
SPST
Output Device:
SCR
Relay Type:
Power Relay
Package Style:
SIP
Maximum Turn On Time:
1/2 cycle
Dimensions:
21.082 x 3.302 x 10.16mm
Height:
10.2mm
Special Features:
AC Output, DC Control, High Noise Immunity, Low EMI and RFI Generation, Machine Insertable, Optically Isolated, TTL & CMOS Compatible, Wave Solderable, Zero Crossing Detection
Capacitance:
3pF
Standards Met:
CSA, UL File E69938
Operating Temperature Range:
-40 → +85°C
Off State Leakage Current:
100 μA
Length:
21.1mm
Depth:
3.3mm
pdf icon
0900766b81471bef.pdf(datasheets)
