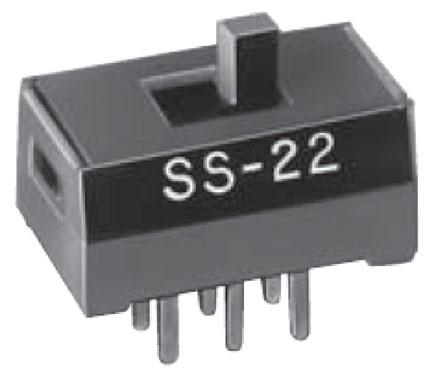

ss22sdp4 NKK Switches PCB Slide Switch DPDT Latching 100 mA Top
ss22sdp4 NKK Switches PCB Slide Switch DPDT Latching 100 mA Top

NKK Switches PCB Slide Switch DPDT Latching 100 mA Top

NKK Switches PCB Slide Switch DPDT Latching 100 mA Top

Manufacturer:
NKK Switches
Manufacturer Part No:
SS22SDP4
Enrgtech Part No:
ET16888374
Warranty:
Manufacturer
$ 5.30 $ 5.30
Checking for live stock
Contact Configuration:
DPDT
Mounting Type:
PCB
Switch Operation:
Latching
Contact Current Rating:
100 mA
Terminal Type:
Solder
Actuator Type:
Top
Length:
10.2mm
Width:
6.54mm
Depth:
6.5mm
Dimensions:
10.2 x 6.54 x 6.5mm
Contact Resistance:
20mΩ
Voltage Rating:
28V ac/dc
Mechanical Life:
100000Cycles
Operating Temperature Range:
-15 → +60°C
Minimum Operating Temperature:
-15°C
Contact Material:
Phosphor Bronze
Actuator Material:
Polyamide
Maximum Operating Temperature:
+60°C
pdf icon
0900766b815551ac.pdf(datasheets)
