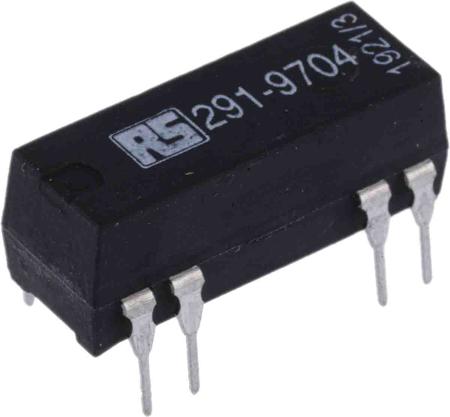

291-9704 RS PRO PCB Mount Reed Relay, 5V dc Coil, SPDT, 175V dc Max, 0.25 A Max, 200Ω
291-9704 RS PRO PCB Mount Reed Relay, 5V dc Coil, SPDT, 175V dc Max, 0.25 A Max, 200Ω
291-9704 RS PRO PCB Mount Reed Relay, 5V dc Coil, SPDT, 175V dc Max, 0.25 A Max, 200Ω

RS PRO PCB Mount Reed Relay, 5V dc Coil, SPDT, 175V dc Max, 0.25 A Max, 200Ω

RS PRO PCB Mount Reed Relay, 5V dc Coil, SPDT, 175V dc Max, 0.25 A Max, 200Ω

Manufacturer:
RS PRO
Manufacturer Part No:
291-9704
Enrgtech Part No:
ET16737581
Warranty:
Manufacturer
$ 15.70 $ 15.70
Checking for live stock
Contact Configuration:
SPDT
Coil Voltage:
5V dc
Mounting Type:
PCB Mount
Maximum Switching Current AC:
0.25 A
Maximum Switching Current DC:
0.25 A
Maximum Switching Voltage AC:
175V ac
Maximum Switching Voltage DC:
175V dc
Coil Power:
125mW
Coil Resistance:
200Ω
Length:
19.3mm
Height:
5.1mm
Depth:
6.4mm
Dimensions:
19.3 x 6.4 x 5.1mm
Isolation Coil To Contact:
1.5kV dc
Maximum Operating Temperature:
+70°C
Maximum Switching Power DC:
3 W
Life:
100000000 (Electrical) cycles
Operating Temperature Range:
-20 → +70°C
Terminal Type:
Through Hole
Contact Resistance:
150 (Static) mΩ, 250 (Dynamic) mΩ
Minimum Operating Temperature:
-20°C
Standards Met:
RoHS Compliant
Operating Time Including Bounce:
0.7ms
pdf icon
0900766b81580420.pdf(datasheets)
pdf icon
0900766b81643247.pdf(datasheets)
pdf icon
A700000014368100.pdf(datasheets)
