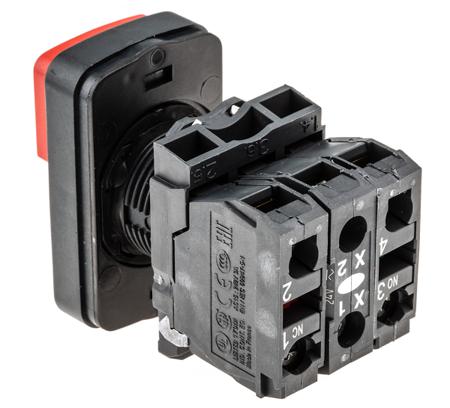

Schneider Electric Harmony XB5 Series Push Button, 22mm Panel Cut Out Diameter, IP66 /IP69/IP69K - XB5AW73731B5
This illuminated push button improves user interaction in diverse industrial settings. Designed for panel mounting, it acts as a pivotal control element in automation and electrical systems. The dual-action mechanism provides both a flush green 'I' and a projecting red 'O' for clear operational indication, ensuring reliability in functional applications.
Features & Benefits
• IP66, IP69, and IP69K ratings offer robust protection
• Operates effectively at 24V across a wide temperature range
• Durable plastic construction guarantees long-lasting performance
• Features dual contact configuration of SPDT for versatile applications
• Integral LED provides visibility under varying conditions
• Mechanical durability of up to 1,000,000 cycles enhances dependability
Applications
• Used for signalling in automated machinery
• Ideal for control panels to facilitate easy operation
• Suitable for environments requiring high-pressure washing, supported by IP66 rating
• Compatible with universal LED blocks for added functionality
• Well-suited for industrial and mechanical installations needing visual indicators
What is the operational voltage for compatibility?
This push button requires a supply voltage of 24V AC/DC, operating at 50/60 Hz for optimal functionality.
How can this be connected in a circuit?
Connections can be made via screw clamp terminals for cables up to 1.5mm², offering flexibility for various installations.
What is the expected lifespan under rated conditions?
When used at rated voltage and 25°C, it can provide a service life of approximately 100000 years.
Is this suitable for adverse environments?
Yes, it operates effectively in an ambient temperature range from -40°C to +70°C, making it adaptable for various environments.
