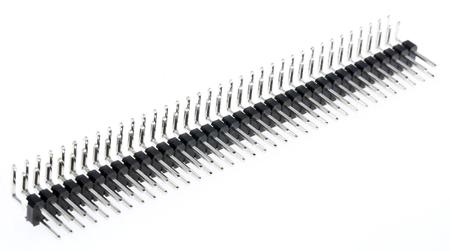

m20-99536-46 HARWIN M20 Series Right Angle Through Hole Pin Header, 72 Contact(s), 2.54 mm Pitch, 2 Row, Unshrouded
m20-99536-46 HARWIN M20 Series Right Angle Through Hole Pin Header, 72 Contact(s), 2.54 mm Pitch, 2 Row, Unshrouded

HARWIN M20 Series Right Angle Through Hole Pin Header, 72 Contact(s), 2.54 mm Pitch, 2 Row, Unshrouded

HARWIN M20 Series Right Angle Through Hole Pin Header, 72 Contact(s), 2.54 mm Pitch, 2 Row, Unshrouded

Manufacturer:
HARWIN
Manufacturer Part No:
M20-99536-46
Enrgtech Part No:
ET16796562
Warranty:
Manufacturer
$ 3.22 $ 3.22
Checking for live stock
Product Type:
Pin Header
Series:
M20
Current:
3A
Pitch:
2.54mm
Housing Material:
Nylon
Number of Contacts:
72
Number of Rows:
2
Orientation:
Right Angle
Shrouded/Unshrouded:
Unshrouded
Mount Type:
Through Hole
Connector System:
Board-to-Board, Wire-to-Board
Contact Plating:
Tin
Contact Material:
Brass
Row Pitch:
2.54mm
Termination Type:
Solder
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
105°C
Contact Gender:
Male
Tail Pin Length:
3mm
Mating Pin Length:
6.1mm
Standards/Approvals:
No
Voltage:
750 V
pdf icon
0900766b815864c9.pdf(datasheets)
