Multimeter Type:
Handheld
Display Type:
Digital
Model Number p:

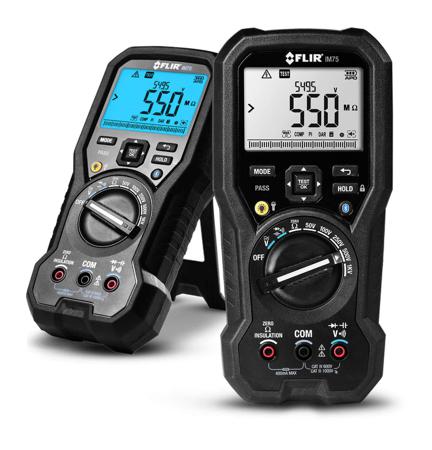

IM75-2
Functions Measured:
AC Voltage, Capacitance, Category Rating, Continuity, DC Voltage, Diode, Earth Bond Resistance, Frequency, Insulation Resistance, Insulation Test Voltages, VFD AC Voltage
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
20GΩ
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum Capacitance Measurement:
10mF
Absolute Maximum Temperature Measurement:
'+50°C
True RMS:
Yes
Maximum Frequency:
40kHz
Resistance Measurement Resolution:
4mΩ
Capacitance Measurement Resolution:
1000µF
Safety Category Level:
CAT III, CAT IV
Temperature Measurement Resolution:
0°C
Battery Type:
6 x 1.5 V AAA Alkaline Batteries
Maximum Operating Temperature:
'+50°C
Safety Category Voltage:
600 V, 1000 V
Minimum Operating Temperature:
0°C
Best AC Voltage Accuracy:
± (1.5% + 5 Digits)
Best DC Voltage Accuracy:
± (1% + 5 Digits)
