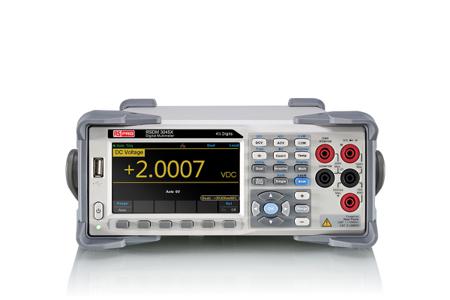

Multimeter Type:
Bench
Model Number p:
RSDM3045X
Display Type:
Digital
Calibrated:
UKAS
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum Resistance Measurement:
100MΩ
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum AC Voltage Measurement:
750V ac
Absolute Maximum Capacitance Measurement:
10mF
True RMS:
Yes
Absolute Maximum Temperature Measurement:
+1000 (Type E) °C, +1200 (Type J) °C, +1300 (Type N) °C, +1370 (Type K) °C, +1760 (Type R & S) °C, +1820 (Type B) °C, +400 (Type T) °C, +660 (RTD) °C
Maximum Frequency:
500kHz
AC Current Measurement Resolution:
0.001mA ac
DC Current Measurement Resolution:
0.01µA dc
Resistance Measurement Resolution:
10mΩ
DC Voltage Measurement Resolution:
0.01mV dc
AC Voltage Measurement Resolution:
0.01mV ac
Capacitance Measurement Resolution:
0.001nF
Minimum Operating Temperature:
0°C
Best AC Current Accuracy:
±2.5% + 25 Digits
Width:
260.27mm
Best DC Voltage Accuracy:
±0.02% + 6 Digits
Best Temperature Measurement Accuracy:
±0.16 (RTD) %, ±0.5 (Type E) %, ±0.5 (Type J) %, ±0.5 (Type K) %, ±0.5 (Type N) %, ±0.5 (Type R) %, ±0.5 (Type T) %, ±0.6 (Type S) %, ±0.76 (Type B) %
Dimensions:
293.75 x 260.27 x 107.21mm
Best Capacitance Measurement Accuracy:
±2% + 50 Digits
Length:
293.75mm
Best Resistance Measurement Accuracy:
±1.75% + 3 Digits
Weight:
3.8kg
Best DC Current Accuracy:
±0.25% + 4 Digits
Maximum Operating Temperature:
+50°C
Best AC Voltage Accuracy:
±3% + 40 Digits
Height:
107.21mm
