Multimeter Type:
Handheld
Model Number p:

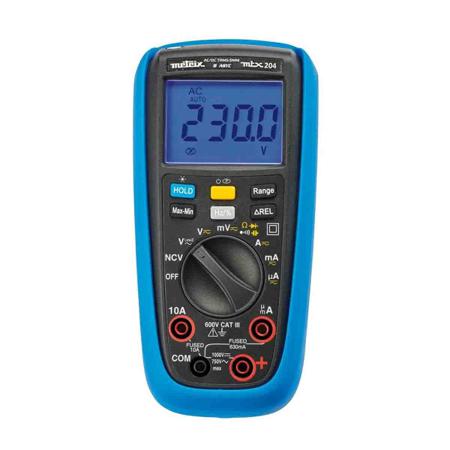

MTX204
Display Type:
Digital
Functions Measured:
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
60MΩ
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum Capacitance Measurement:
100mF
True RMS:
Yes
Maximum Frequency:
1kHz
DC Current Measurement Resolution:
0.1µA dc
AC Current Measurement Resolution:
0.1µA ac
AC Voltage Measurement Resolution:
0.001V ac
DC Voltage Measurement Resolution:
0.001V dc
Resistance Measurement Resolution:
100mΩ
Safety Category Level:
CAT III
Capacitance Measurement Resolution:
0.001nF
Dimensions:
80 x 50 x 170mm
Best DC Voltage Accuracy:
0.2 % + 2 Digits
Weight:
320g
Height:
170mm
Minimum Operating Temperature:
-20°C
Best Resistance Measurement Accuracy:
0.5 % + 5 Digits
Maximum Operating Temperature:
+55°C
Battery Type:
1.5 V AA
Safety Category Voltage:
600V
Best DC Current Accuracy:
0.5 % + 3 Digits
Best Capacitance Measurement Accuracy:
2 % + 5 Digits
Best AC Voltage Accuracy:
1 % + 4 Digits
Width:
50mm
Best AC Current Accuracy:
0.5 % + 5 Digits
Length:
80mm
