Multimeter Type:
Handheld
Display Type:
Digital
Model Number p:

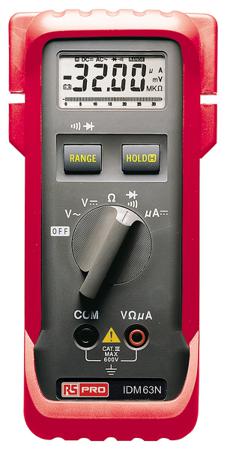

IDM63N
Calibrated:
RSCAL
Functions Measured:
AC Voltage, Continuity, DC Current, DC Voltage, Diode, Resistance
Absolute Maximum Resistance Measurement:
30MΩ
Absolute Maximum AC Voltage Measurement:
600V ac
Absolute Maximum DC Current Measurement:
3mA dc
Absolute Maximum DC Voltage Measurement:
600V dc
True RMS:
No
DC Current Measurement Resolution:
0.1µA dc
AC Voltage Measurement Resolution:
1mV ac
DC Voltage Measurement Resolution:
0.1mV dc
Resistance Measurement Resolution:
100mΩ
Safety Category Level:
CAT III
Minimum Operating Temperature:
0°C
Safety Category Voltage:
600V
Length:
80mm
Best AC Voltage Accuracy:
±1.5% + 5 Digits
Height:
165mm
Dimensions:
80 x 36 x 165mm
Weight:
310g
Width:
36mm
Best DC Current Accuracy:
±1% + 2 Digits
Best DC Voltage Accuracy:
±0.5% + 2 Digits
Maximum Operating Temperature:
+50°C
Battery Type:
AAA 1.5 V, AM4, IEC LR03
Best Resistance Measurement Accuracy:
±1% + 4 Digits
