Multimeter Type:
Bench
Display Type:
Digital
Model Number p:

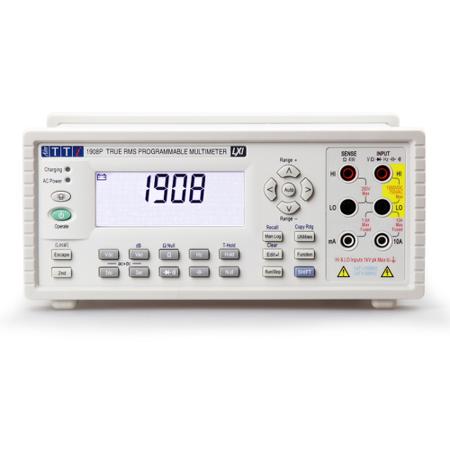

1908P
Functions Measured:
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum Resistance Measurement:
10MΩ
Absolute Maximum DC Voltage Measurement:
1000V dc
True RMS:
Yes
Absolute Maximum Temperature Measurement:
+400°C
Absolute Maximum Capacitance Measurement:
100µF
Maximum Frequency:
100kHz
AC Current Measurement Resolution:
100nA ac
DC Current Measurement Resolution:
100nA dc
AC Voltage Measurement Resolution:
1µV ac
DC Voltage Measurement Resolution:
1µV dc
Resistance Measurement Resolution:
1mΩ
Temperature Measurement Resolution:
0.1°C
Safety Category Level:
CAT II
Capacitance Measurement Resolution:
10pF
Best AC Voltage Accuracy:
0.3 %
Best Capacitance Measurement Accuracy:
2 %
Minimum Operating Temperature:
+5°C
Width:
235mm
Weight:
2kg
Best DC Current Accuracy:
0.05 %
Length:
260mm
Best AC Current Accuracy:
0.35 %
Best DC Voltage Accuracy:
0.02 %
Height:
88mm
Battery Type:
Rechargeable NiMH
Maximum Operating Temperature:
+40°C
Best Resistance Measurement Accuracy:
0.05 %
Safety Category Voltage:
600V
Best Temperature Measurement Accuracy:
0.05 %
Dimensions:
260 x 235 x 88mm
