Multimeter Type:
Bench
Display Type:
Digital
Model Number p:

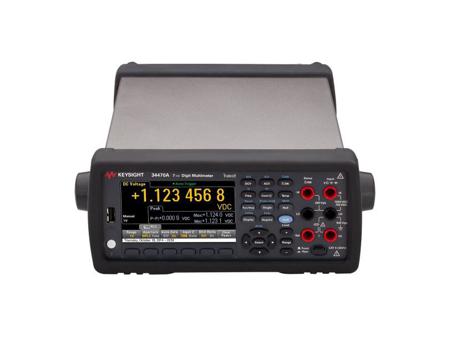

34470A
Functions Measured:
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum Resistance Measurement:
100MΩ
Absolute Maximum Capacitance Measurement:
100µF
True RMS:
Yes
Maximum Frequency:
300kHz
Safety Category Level:
CAT II
Best DC Current Accuracy:
±0.15% + 0.01
Height:
103.8mm
Minimum Operating Temperature:
0°C
Weight:
3.8kg
Best DC Voltage Accuracy:
±0.004% + 0.0006
Dimensions:
261.2 x 303.2 x 103.8mm
Length:
261.2mm
Width:
303.2mm
Safety Category Voltage:
300V
Maximum Operating Temperature:
+55°C
Battery Type:
2x Common Cathode Pair
Best Resistance Measurement Accuracy:
±4% + 0.001
