Multimeter Type:
Bench
Display Type:
Digital
Model Number p:

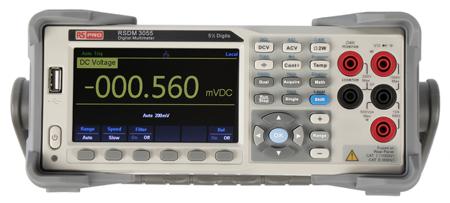

RSDM3055
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Period, Resistance, Temperature
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum AC Voltage Measurement:
750V ac
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
100MΩ
Absolute Maximum AC Current Measurement:
10A ac
True RMS:
Yes
Absolute Maximum Temperature Measurement:
+1000 (E) °C, +1200 (J) °C, +1300 (N) °C, +1370 (K) °C, +1760 (R) °C, +1760 (S) °C, +1820 (B) °C, +400 (T) °C, +660 (RTD) °C
Absolute Maximum Capacitance Measurement:
10mF
Maximum Frequency:
1MHz
Safety Category Level:
CAT I, CAT II
Safety Category Voltage:
600 V, 1000V
Height:
105mm
Weight:
3.3kg
Best Resistance Measurement Accuracy:
0.02 %
Best DC Current Accuracy:
0.055 %
Width:
260mm
Best AC Current Accuracy:
0.5 %
Length:
282mm
Best DC Voltage Accuracy:
0.015 %
Dimensions:
282 x 260 x 105mm
Best Capacitance Measurement Accuracy:
1 %
Best AC Voltage Accuracy:
0.2 %
Best Temperature Measurement Accuracy:
0.16 (RTD) °C, 0.5 (E) °C, 0.5 (J) °C, 0.5 (K) °C, 0.5 (N) °C, 0.5 (R) °C, 0.5 (T) °C, 0.6 (S) °C, 0.76 (B) °C
