Multimeter Type:
Bench
Display Type:
7.5 Digital
Model Number p:

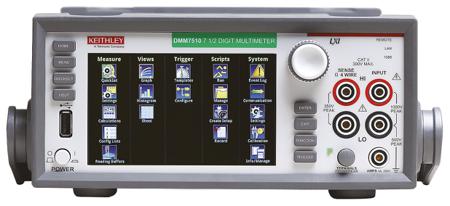

DMM7510
Functions Measured:
AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
1GΩ
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum AC Voltage Measurement:
700V ac
Absolute Maximum Temperature Measurement:
+850°C
Absolute Maximum Capacitance Measurement:
1mF
True RMS:
Yes
Maximum Frequency:
500kHz
DC Current Measurement Resolution:
1µA dc
AC Current Measurement Resolution:
1nA ac
DC Voltage Measurement Resolution:
10nV dc
AC Voltage Measurement Resolution:
0.1µV ac
Resistance Measurement Resolution:
100nΩ
Capacitance Measurement Resolution:
0.1pF
Temperature Measurement Resolution:
0.01°C
Best Capacitance Measurement Accuracy:
0.4+0.1 %
Dimensions:
425 x 255 x 106mm
Best Temperature Measurement Accuracy:
±0.06 (4-Wire) °C, ±0.75 (3-Wire) °C
Width:
255mm
Length:
425mm
Maximum Operating Temperature:
+50°C
Height:
106mm
Minimum Operating Temperature:
0°C
Weight:
4.1kg
