Multimeter Type:
Handheld
Model Number p:

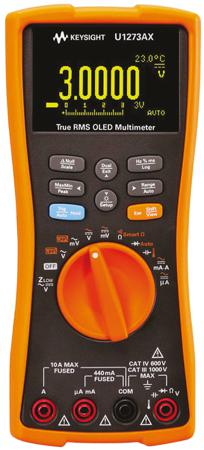

U1273A
Display Type:
Digital
Functions Measured:
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature
Calibrated:
RSCAL
Absolute Maximum Resistance Measurement:
300MΩ
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum Capacitance Measurement:
10mF
True RMS:
Yes
Absolute Maximum Temperature Measurement:
+1372°C
Maximum Frequency:
999.99kHz
DC Current Measurement Resolution:
0.01µA dc
AC Current Measurement Resolution:
0.01µA ac
Resistance Measurement Resolution:
1mΩ
AC Voltage Measurement Resolution:
0.001mV ac
DC Voltage Measurement Resolution:
0.001mV dc
Temperature Measurement Resolution:
0.1°C
Capacitance Measurement Resolution:
1pF
Safety Category Level:
CAT III, CAT IV
Minimum Operating Temperature:
-20°C
Battery Type:
1.5 V Alkaline
Height:
207mm
Length:
59mm
Width:
92mm
Safety Category Voltage:
600 V, 1000V
Dimensions:
59 x 92 x 207mm
Maximum Operating Temperature:
+55°C
Weight:
500g
