Multimeter Type:
Handheld
Model Number p:

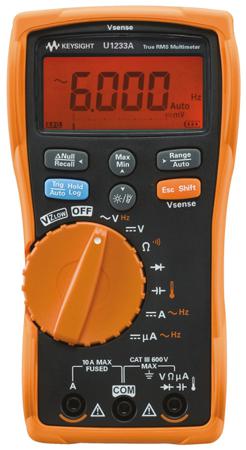

U1233A
Display Type:
Digital
Calibrated:
UKAS
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum Resistance Measurement:
60MΩ
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum AC Voltage Measurement:
600V ac
Absolute Maximum DC Voltage Measurement:
600V dc
Absolute Maximum Temperature Measurement:
+1372°C
True RMS:
Yes
Absolute Maximum Capacitance Measurement:
10mF
Maximum Frequency:
1kHz
AC Current Measurement Resolution:
0.01µA ac
DC Current Measurement Resolution:
0.01µA dc
AC Voltage Measurement Resolution:
0.1mV ac
DC Voltage Measurement Resolution:
0.1mV dc
Resistance Measurement Resolution:
100mΩ
Temperature Measurement Resolution:
0.1°C
Capacitance Measurement Resolution:
1nF
Safety Category Level:
CAT III
Maximum Operating Temperature:
+55°C
Length:
55mm
Best DC Voltage Accuracy:
±0.5% + 2 Digits
Best Temperature Measurement Accuracy:
±1% + 1 °C
Dimensions:
55 x 86 x 169mm
Best Capacitance Measurement Accuracy:
±1.9% + 2 Digits
Best AC Voltage Accuracy:
±4% + 3 Digits
Best AC Current Accuracy:
±1.5% + 3 Digits
Width:
86mm
Safety Category Voltage:
600V
Battery Type:
AAA x 4
Best Resistance Measurement Accuracy:
±1.5% + 3 Digits
Minimum Operating Temperature:
-10°C
Height:
169mm
Weight:
371g
Best DC Current Accuracy:
±1% + 3 Digits
