Multimeter Type:
Handheld
Model Number p:

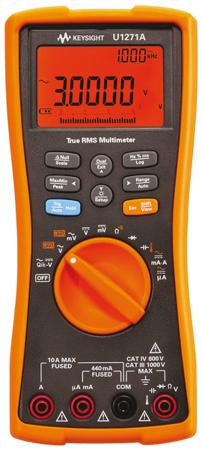

U1271A
Display Type:
Digital
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
Calibrated:
UKAS
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum Resistance Measurement:
100MΩ
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum Capacitance Measurement:
10mF
True RMS:
Yes
Absolute Maximum Temperature Measurement:
+1372°C
Maximum Frequency:
20kHz
AC Current Measurement Resolution:
0.01µA ac
DC Current Measurement Resolution:
0.01µA dc
AC Voltage Measurement Resolution:
0.01mV ac
Resistance Measurement Resolution:
1mΩ
Safety Category Level:
CAT III, CAT IV
Capacitance Measurement Resolution:
1pF
Temperature Measurement Resolution:
0.1°C
Safety Category Voltage:
600 V, 1000V
Best AC Voltage Accuracy:
±0.7% + 20 Digits
Best Temperature Measurement Accuracy:
±1% + 1 °C
Dimensions:
59 x 207 x 92mm
Best AC Current Accuracy:
±0.9% + 25 Digits
Best Capacitance Measurement Accuracy:
±1% + 2 Digits
Minimum Operating Temperature:
-20°C
Height:
92mm
Maximum Operating Temperature:
+55°C
Best DC Voltage Accuracy:
±0.05% + 2 Digits
Length:
59mm
Battery Type:
AAA x 4
Width:
207mm
Best DC Current Accuracy:
±0.2% + 5 Digits
Weight:
518g
Best Resistance Measurement Accuracy:
±0.2% + 5 Digits
