Multimeter Type:
Handheld
Model Number p:

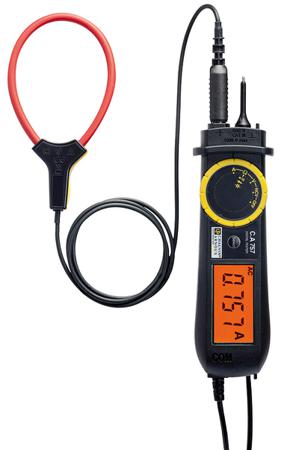

CA 757
Display Type:
Digital
Calibrated:
RSCAL
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Resistance
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
30MΩ
Absolute Maximum AC Current Measurement:
300A ac
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum Capacitance Measurement:
30mF
True RMS:
No
AC Current Measurement Resolution:
0.01A ac
Resistance Measurement Resolution:
100mΩ
AC Voltage Measurement Resolution:
1mV ac
Capacitance Measurement Resolution:
1pF
Safety Category Level:
CAT III
Length:
45mm
Best AC Voltage Accuracy:
±3 % + 4 digits
Best Capacitance Measurement Accuracy:
±5 % + 5 digits
Battery Type:
AAA 1.5 V, IEC LR03
Maximum Operating Temperature:
+55°C
Weight:
200g
Width:
52mm
Best AC Current Accuracy:
±3 % + 4 Digits
Safety Category Voltage:
600V
Best DC Voltage Accuracy:
±2 % + 3 digits
Dimensions:
52 x 45 x 180mm
Minimum Operating Temperature:
-10°C
Height:
180mm
Best Resistance Measurement Accuracy:
±3 % + 3 digits
