Loop Impedance Test Type:
High/Low Current
Automatic RCD Test:
Yes
Model Number p:

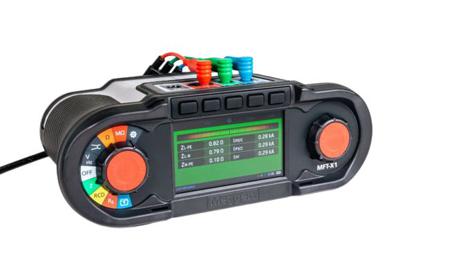

MFT-X1-AU
RCD Ramp Test:
Yes
Non-Tripping:
Yes
Insulation Test Voltage:
50 V dc, 100 V dc, 250 V dc, 500 V dc, 1000V dc
Maximum Voltage Measurement:
1000V dc
Test Type:
AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Resistance
Earth Resistance Measurement:
Yes
Downloadable Data:
Yes
RCD Test Type:
A, AC, B
IP Rating:
IP54
Maximum Operating Temperature:
+55°C
Weight:
1.6kg
Maximum Continuity Resistance:
999kΩ
Height:
143mm
Minimum Operating Temperature:
-10°C
Display Type:
TFT
Operating Temperature Range:
-10 → +55 °C
Safety Category:
CAT III 600 V/CAT IV 300 V
Dimensions:
274 x 96 x 143mm
Battery Type:
Li-Ion
Continuity Range:
0.01 → 999 k Ω
Safety Category Voltage:
300 V, 600 V
Minimum Continuity Resistance:
0.01Ω
Length:
274mm
Power Source:
Battery
Voltage Measurement Range:
0.001 → 1000V dc
Width:
96mm
