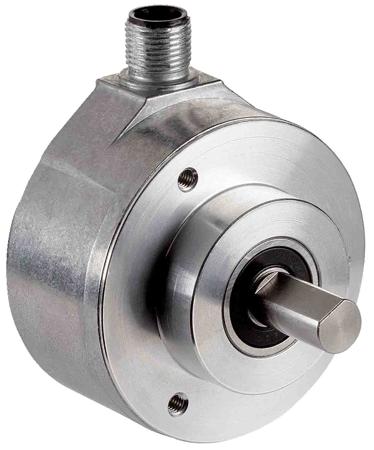

dfs60b-s4pc10000 Incremental Encoder Sick 1 - 10000 ppr 9000rpm Solid 4.5 → 32 V

The Sick DFS60 is an incremental encoder. This incremental encoder is programmable/configurable. It has a 8-pin, radial, M12 male type connector. The product is equipped with reverse polarity protection and short--circuit protection of the outputs. The mean time to dangerous failure (MTTFd) is of 300 years (EN ISO 13849-1). It has an aluminium face mount flange and a solid shaft and an aluminium die cast housing. Start up torque: 0.5 Ncm (+20 °C) Operating torque: 0.3 Ncm (+20 °C) Bearing lifetime: 3.6 x 10^10 revolutions IP67 and IP65 enclosure rating.

For more information please check the datasheets.
