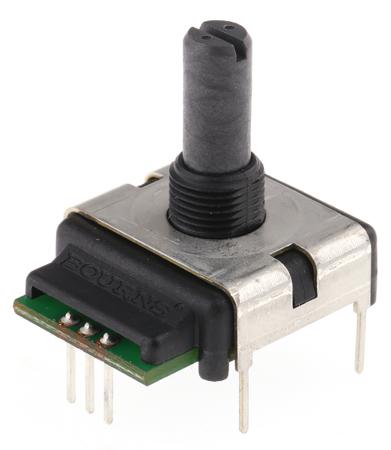

Bourns Incremental Incremental Encoder, 24 ppr, Quadrature Signal, Solid Type, 9mm Shaft

Bourns Incremental Incremental Encoder, 24 ppr, Quadrature Signal, Solid Type, 9mm Shaft

Manufacturer:

Manufacturer Part No:

ECW1D-B24-BC0024L

Enrgtech Part No:

ET100058341

Warranty:

Manufacturer

$ 6.43

Checking for live stock

Encoder Technology:

Incremental

Pulses Per Revolution:

Maximum Revolutions:

120rpm

Output Signal Type:

Quadrature

Shaft Type:

Solid

Shaft Diameter:

9mm

Resolution:

2 bit

IP Rating:

IP40

Overall Height:

27.51mm

Overall Width:

28.49mm

Overall Depth:

23.37mm

Minimum Operating Temperature:

-40°C

0900766b80ddce44.pdf(datasheets)
