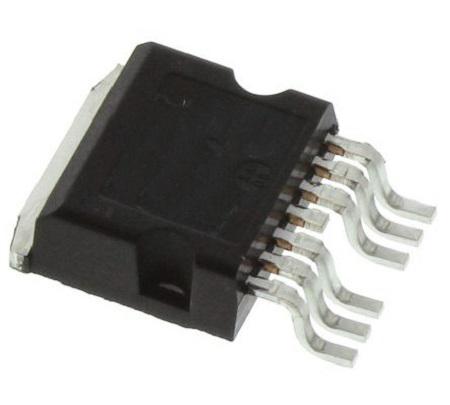

sct040h120g3ag STMicroelectronics SCT Type N-Channel MOSFET, 40 A, 1200 V Enhancement, 7-Pin H2PAK-7
sct040h120g3ag STMicroelectronics SCT Type N-Channel MOSFET, 40 A, 1200 V Enhancement, 7-Pin H2PAK-7

STMicroelectronics SCT Type N-Channel MOSFET, 40 A, 1200 V Enhancement, 7-Pin H2PAK-7

STMicroelectronics SCT Type N-Channel MOSFET, 40 A, 1200 V Enhancement, 7-Pin H2PAK-7

Manufacturer:
STMicroelectronics
Manufacturer Part No:
SCT040H120G3AG
Enrgtech Part No:
ET26168542
Warranty:
Manufacturer
$ 14.43 $ 14.43
Checking for live stock
Channel Type:
Type N
Product Type:
MOSFET
Maximum Continuous Drain Current Id:
40A
Maximum Drain Source Voltage Vds:
1200V
Package Type:
H2PAK-7
Series:
13Ω
Mount Type:
Surface
Pin Count:
7
Maximum Drain Source Resistance Rds:
40mΩ
Channel Mode:
Enhancement
Maximum Gate Source Voltage Vgs:
22 V
Forward Voltage Vf:
2.6V
Maximum Power Dissipation Pd:
300W
Typical Gate Charge Qg @ Vgs:
6.49kΩ
Minimum Operating Temperature:
-55°C
Maximum Operating Temperature:
175°C
Length:
15.25mm
Height:
4.8mm
Standards/Approvals:
AEC-Q101, RoHS
Width:
3 nC @ 4.5 V, 5.5 nC @ 4.5 V
Automotive Standard:
AEC-Q101
pdf icon
A700000012489197.pdf(datasheets)
Explore MOSFETs engineered for fast switching and efficiency. Enrgtech offers power transistors ideal for voltage regulation, amplification, and electronic control systems.
