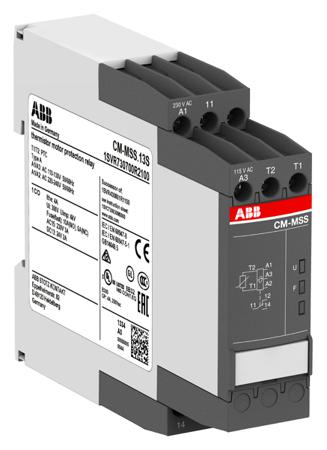

1svr730700r2100-cm-mss13s ABB Temperature Monitoring Relay, 1 Phase, SPDT, DIN Rail
1svr730700r2100-cm-mss13s ABB Temperature Monitoring Relay, 1 Phase, SPDT, DIN Rail

ABB Temperature Monitoring Relay, 1 Phase, SPDT, DIN Rail

ABB Temperature Monitoring Relay, 1 Phase, SPDT, DIN Rail

Manufacturer:
ABB
Manufacturer Part No:
1SVR730700R2100 CM-MSS.13S
Enrgtech Part No:
ET21683618
Warranty:
Manufacturer
$ 95.13 $ 95.13
Checking for live stock
Monitoring Application:
Temperature
Electrical Phase:
1
Contact Configuration:
SPDT
Mounting Type:
DIN Rail
Time Delay:
<100ms
Frequency Sensing Range:
50 → 60Hz
Temperature Sensitivity:
Overtemperature, Winding Temperature
Series:
CM-MSS
Minimum Temperature Sensed:
-25°C
Maximum Temperature Sensed:
+85°C
Maximum Voltage Sensed:
240V
Current Range:
Maximum of 3.7mA
Dimensions:
103.7 x 22.5 x 85.6mm
Maximum Operating Temperature:
+60°C
Width:
22.5mm
Minimum Operating Temperature:
-25°C
Operating Temperature Range:
-25 → +60°C
Minimum Frequency Sensed:
50Hz
Height:
85.6mm
Length:
103.7mm
Number of Poles:
1
Special Features:
Automatic Reset, Fail-Safe, Inbuilt PTC Sensor, Insufficient Cooling Protection, One Measuring Circuit, Over Heating Protection, Over Load Protection
Terminal Type:
Screw
pdf icon
0900766b813d645f.pdf(datasheets)
pdf icon
0900766b813da0dd.pdf(datasheets)
pdf icon
A700000009346602.pdf(datasheets)
pdf icon
A700000009347271.pdf(datasheets)
Product Reviews
