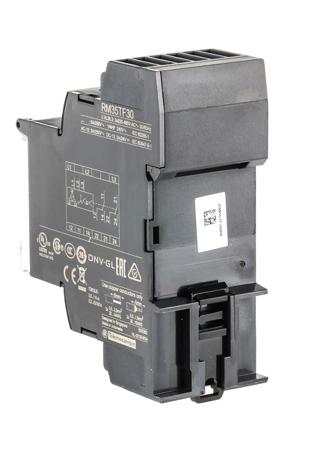

rm35tf30 Schneider Electric Phase, Voltage Monitoring Relay with DPDT Contacts, 3 Phase, 220 → 480 V ac
rm35tf30 Schneider Electric Phase, Voltage Monitoring Relay with DPDT Contacts, 3 Phase, 220 → 480 V ac
rm35tf30 Schneider Electric Phase, Voltage Monitoring Relay with DPDT Contacts, 3 Phase, 220 → 480 V ac
rm35tf30 Schneider Electric Phase, Voltage Monitoring Relay with DPDT Contacts, 3 Phase, 220 → 480 V ac
rm35tf30 Schneider Electric Phase, Voltage Monitoring Relay with DPDT Contacts, 3 Phase, 220 → 480 V ac
rm35tf30 Schneider Electric Phase, Voltage Monitoring Relay with DPDT Contacts, 3 Phase, 220 → 480 V ac
rm35tf30 Schneider Electric Phase, Voltage Monitoring Relay with DPDT Contacts, 3 Phase, 220 → 480 V ac
rm35tf30 Schneider Electric Phase, Voltage Monitoring Relay with DPDT Contacts, 3 Phase, 220 → 480 V ac
rm35tf30 Schneider Electric Phase, Voltage Monitoring Relay with DPDT Contacts, 3 Phase, 220 → 480 V ac
rm35tf30 Schneider Electric Phase, Voltage Monitoring Relay with DPDT Contacts, 3 Phase, 220 → 480 V ac

RM35 TF multi-function three-phase network control relays Schneider Electric RM35 TF measurement and control relays for 3 phase supplies, monitor correct sequences of phases L1, L2 and L3. It also monitors total loss of one or more phases, asymmetry, and over and undervoltage with independent adjustments. Checks its own power supply Clear hinged front cover Potentiometer selects voltages between phases LED display of output status DIN Rail mounting Approvals UL, CSA, GL, C-Tick, GOST Standards NF EN 60255-6 and IEC 60255-6 Schneider Electric Voltage, Current, Phase & Motor Protection

Schneider Electric Phase, Voltage Monitoring Relay with DPDT Contacts, 3 Phase, 220 → 480 V ac

Manufacturer:
Schneider Electric
Manufacturer Part No:
RM35TF30
Enrgtech Part No:
ET14051391
Warranty:
Manufacturer
$ 359.51
Checking for live stock
Voltage Sensitivity:
Overvoltage, Undervoltage
Dimensions:
72 x 35 x 90mm
Voltage Sensing Range:
220 → 480V ac
Width:
35mm
Electrical Phase:
3
Standards Met:
CE, CSA, RoHS Compliant, UL
Maximum Operating Temperature:
+50°C
Terminal Type:
Screw
Time Delay:
0.1 → 10s
Minimum Voltage Sensed:
220V ac
Operating Temperature Range:
+50°C
Monitoring Application:
Phase, Voltage
Maximum Voltage Sensed:
480V ac
Contact Configuration:
DPDT
Length:
72mm
Phase Sensitivity:
Phase Asymmetry, Phase Failure, Phase Sequence
Better World Verification:
Green Premium
Better World Product:
Yes
Mounting Type:
DIN Rail
Series:
Harmony Control
Height:
90mm
Minimum Operating Temperature:
-20°C
RoHS Status:
RoHS non-compliant
Operating Temperature:
-20°C ~ 50°C
Type:
Voltage Asymmetry, Voltage Sensing AC, Phase Loss, Phase Sequence
REACH Status:
REACH Affected
Output Type:
Relay
Trip Range:
220 ~ 480V AC
Trip Status:
Energized High/Low
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
DPDT (2 Form C)
Contact Rating @ Voltage:
5A @ 250VAC/250VDC
standardLeadTime:
5 Weeks
Delay Time:
0.1 Sec ~ 10 Sec
Mounting Type:
DIN Rail
Series:
Harmony
Packaging:
Box
Voltage - Supply:
220 ~ 480VAC
