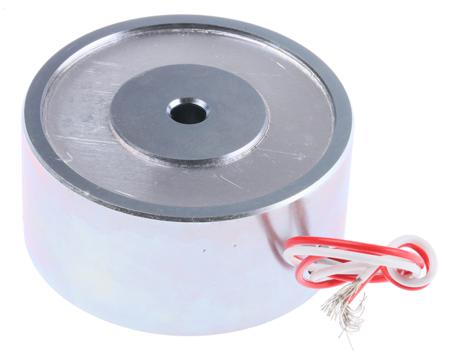

Supporting electromagnets These devices are designed for supporting or gripping ferromagnetic parts. The maximum retaining force is obtained by contact with flat mild steel parts, with a surface area equal to or greater than the attraction surface, and with a sufficient thickness (equal to at least 1/8 th of the diameter ofthe electromagnet). Any gap, no matter how small, will noticeably reduce this maximum force. Supply voltage: 24 Vdc Protection index: IP 40 Thermal class: B (130 °C) Stock switching max. VF dimensions (mm) weight no. (W) (daN) a b c d (g) 236-9294 5 27 30 20 M6 10 100 236-9301 7.5 44 39 32 M6 10 300 236-9317 8.5 79 48 27 M6 10 350 236-9323 10 145 63 30 M8 15 700 236-9339 14.5 200 75 35 M10 15 1200 236-9351 20 294 90 40 M12 20 2200 236-9367 29.5 550 110 50 M12 20 3500
