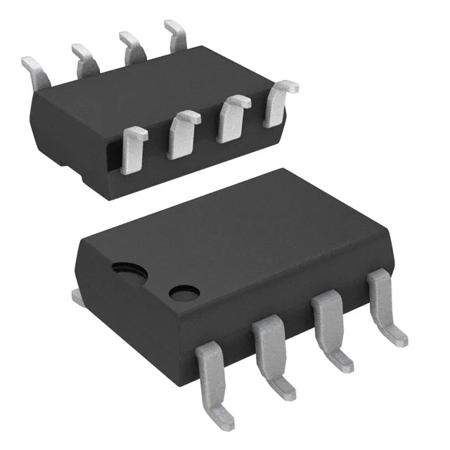

HCPL-7800A-500E Broadcom, Isolation Amplifier, Maximum of 5.5 V, 8-Pin DIP8 - Gull Wing

For more information please check the datasheets.

Broadcom HCPL-7800A-500E , Isolation Amplifier, Maximum of 5.5 V, 8-Pin DIP8 - Gull Wing

Manufacturer:

Broadcom

Manufacturer Part No:

HCPL-7800A-500E

Enrgtech Part No:

ET100027775

Warranty:

Manufacturer

$ 14.45

Checking for live stock

Power Supply Type:

Single

Typical Single Supply Voltage:

Maximum of 5.5 V

Isolation Mode Rejection:

76dB

Number of Channels per Chip:

Maximum Voltage Gain:

8.08V/V

Mounting Type:

Surface Mount

Package Type:

DIP8 - Gull Wing

Pin Count:

Dimensions:

9.8 x 6.35 x 3.56mm

Height:

3.56mm

Width:

6.35mm

Length:

9.8mm

0900766b8163d680.pdf(datasheets)

0900766b81644f9e.pdf(datasheets)

Shop isolation amplifiers at Enrgtech for precise signal conditioning. Find high-performance modules for noise reduction, safety, and accurate data transmission.

Broadcom HCPL-7800A-500E , Isolation Amplifier, Maximum of 5.5 V, 8-Pin DIP8 - Gull Wing
