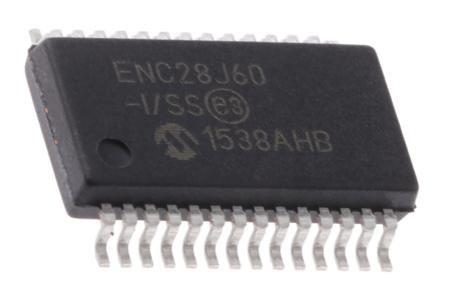

enc28j60-iss Microchip ENC28J60-I/SS, Ethernet Controller, 10Mbps MII, MIIM, Serial-SPI, 3.3 V, 28-Pin SSOP

ECN28J60 10Base-T Ethernet Controllers The ENC28J60 from Microchip is a great stand-alone ethernet controller. ENC28J60 is a 10BASE-T controller in a small form factor SOIC package with 28 pins. Featuring bandwidth of 10Mbps and onboard MAC & PHY, this controller is great for a range of applications. Microchips ethernet controllers also contain internal DMA for faster memory copying and a max speed of 25Mhz. Features and Benefits:

10BASE-T

Integrated MAC and PHY

10Mbps bandwidth

IEEE 802.3 compatible

SPI interface with clock speeds up to 25Mhz

Supports MAC Unicast, Multicast and Broadcast packets

PHY loopback mode and programmable outputs

Applications:

Security

Instrumentation

Home control

Building automation

Industrial automation

VoIP

PHY and MAC? PHY stand for 'Physical layer'. A physical layer is the first layer in an OSI stack. PHY layer will define physical and electrical characteristics of the network.

MAC is the abbreviation for 'Medium Access Control' and is the second layer in the OSI stack. The MAC is responsible for sending and receiving RF frames. Daughter boards

AC164121 – 667-7899

AC164123 – 667-7902

For more information please check the datasheets.

Microchip ENC28J60-I/SS, Ethernet Controller, 10Mbps MII, MIIM, Serial-SPI, 3.3 V, 28-Pin SSOP

Name: Microchip ENC28J60-ISS, Ethernet Controller, 10Mbps MII, MIIM, Serial-SPI, 3.3 V, 28-Pin SSOP
Brand: Microchip
SKU: ET14062679
Availability: InStock

Manufacturer:

Microchip

Manufacturer Part No:

ENC28J60-I/SS

Enrgtech Part No:

ET14062679

Warranty:

Manufacturer

$ 4.09

Checking for live stock

Physical Network Type:

10BaseT

Host Interface:

Serial-SPI

IC Type:

Controller IC

Network Interface:

MII, MIIM

Communication Mode:

Full Duplex, Half Duplex

Data Rate:

10Mbps

Loopback Mode:

Internal

Standard Supported:

IEEE 802.3

Mounting Type:

Surface Mount

Package Type:

SSOP

Pin Count:

DMA Support:

Yes

Datasheet-b4670bec(datasheets)
