Coil Voltage:
12V dc
Contact Configuration:
DPDT
Mounting Type:
DIN Rail
Series:
2RM
Number of Poles:
2
Load Current Rating:
8A
Maximum Input Voltage:
250V ac
Terminal Type:
Screw
Switching Voltage:
12 V dc → 250V ac
Depth:
15.8mm
Height:
52mm
Length:
75mm
Contact Material:
Silver Alloy
Input Current:
8A
Standards Met:
CE, cURus
Minimum Operating Temperature:
-40°C
Relay Switching Classification:

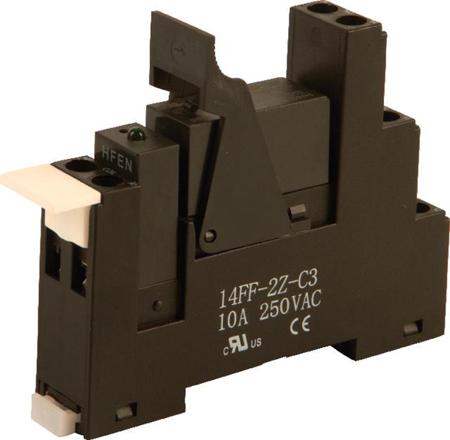

Interface Relay Module
Dimensions:
75 x 15.8 x 52mm
Special Features:
Change Over Contacts, Supplied Complete, Relay, LED, Socket, Ejector Clip and Identification Label, 1Part Number for Simple Ordering AC & DC Coils, Supply Status LED as Standard 35mm Din Rail Mounting, 2 Socket Types For Ease of Installation, 12A and 16A Versions
Control Resistance:
100mΩ
Maximum Operating Temperature:
+85°C
Life:
100000 (AC, Mechanical), 100000 (DC, Electrical), 10000000 (DC, Mechanical), 50000 (AC, Electrical)
Operating Temperature Range:
-40 → +85°C
Turn Off Time:
8ms
Turn On Time:
15ms
