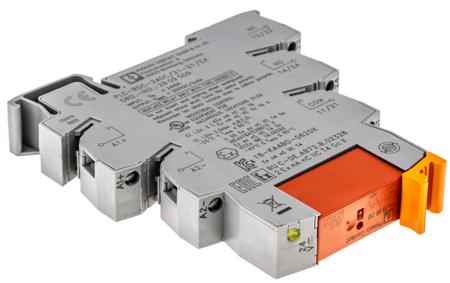

Phoenix Contact PLC-RSC- 24DC/21-21/EX Series Relay Module, DIN Rail Mount, 24V dc Coil, DPDT, 2-Pole

Phoenix Contact PLC-RSC- 24DC/21-21/EX Series Relay Module, DIN Rail Mount, 24V dc Coil, DPDT, 2-Pole

Manufacturer:
Manufacturer Part No:
2909509
Enrgtech Part No:
ET14630285
Warranty:
Manufacturer
$ 32.92 $ 32.92
Checking for live stock
Coil Voltage:
24V dc
Contact Configuration:
DPDT
Mounting Type:
DIN Rail
Number of Poles:
2
Series:
PLC-RSC- 24DC/21-21/EX
Minimum Input Voltage:
20.2V
Maximum Input Voltage:
33.6V dc
Terminal Type:
Screw
Switching Voltage:
250V ac/dc
Depth:
94mm
Height:
80mm
Length:
14mm
Contact Material:
Silver Alloy
Input Current:
18mA
Operating Temperature Range:
-40 → +70°C
Life:
3 x 10^7 (Mechanical) cycles
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
+70°C
Relay Switching Classification:
Interface Relay Module
Accessory Type:
Relay Module
Turn On Time:
8ms
Standards Met:
CE Compliant, EN 50178, EN 60079-0, -7, -15, IEC 60664, UL Listed, USA Certified
Special Features:
IP20 Relay Base, Reinforced Insulation, Safe Isolation
Turn Off Time:
10ms
Dimensions:
14 x 94 x 80mm
Input Voltage Range:
20.2 → 33.6V dc
