Series:
QUINT POWER
Type:
Switched Mode
Electrical Phase:
1
Number of Outputs:
1
AC or DC Input Voltage:
ac, dc
Input Voltage:
100 → 240 V ac / 110 → 250V dc
AC or DC Output Voltage:
dc
Output Voltage:
12V dc
Output Current:
15A
Dimensions:
50 x 125 x 130mm
Depth:
125mm
Width:
50mm
Height:
130mm
Maximum Temperature:
+70°C
Hazardous Area Certification:
Class I Division 2 Group A, Class I Division 2 Group B, Class I Division 2 Group C, Class I Division 2 Group D
Standards Met:
ABS, BV, DIN VDE 0100-410, DNV GL, EN 50178/VDE 0160 (PELV), EN 60204-1 (PELV), EN 61000-3-2, EN 61558-2-16, IEC 60950-1, IEC 60950-1/VDE 0805 (SELV), LR, PRS, UL 60950-1, UL ANSI/ISA-12.12.01 Class I, UL Listed UL 508
Special Features:
Dynamic Boost with up to 200% for 5 Second, High-Performance QUINT POWER Power Supplies, Monitoring Indicates Critical Operating States Before Errors Occur, NFC Interface
Mounting Type:
DIN Rail Mount
Model:

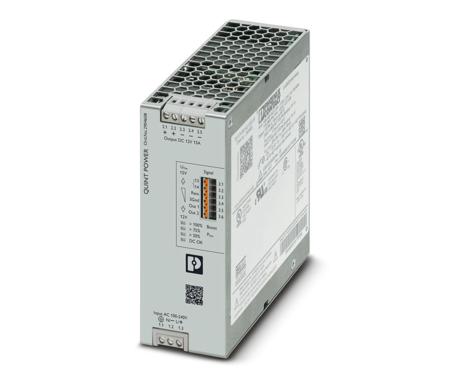

QUINT4-PS/1AC/12DC/15
Minimum Temperature:
-25°C
MTBF:
>749000h
Ripple And Noise:
50mV Pk-Pk
Efficiency:
92%
