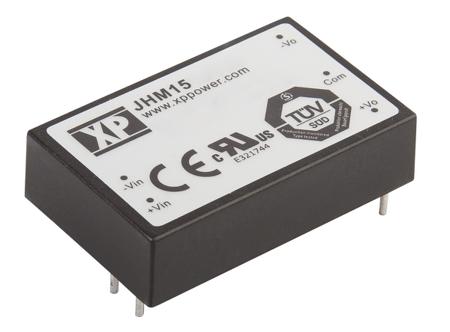

jhm1524d12 XP Power JHM15 DC-DC Converter, ±12V dc/ ±625mA Output, 18 → 36 V dc Input, 15W, Through Hole, +80°C Max Temp
jhm1524d12 XP Power JHM15 DC-DC Converter, ±12V dc/ ±625mA Output, 18 → 36 V dc Input, 15W, Through Hole, +80°C Max Temp

XP Power JHM15 DC-DC Converter, ±12V dc/ ±625mA Output, 18 → 36 V dc Input, 15W, Through Hole, +80°C Max Temp

XP Power JHM15 DC-DC Converter, ±12V dc/ ±625mA Output, 18 → 36 V dc Input, 15W, Through Hole, +80°C Max Temp

Manufacturer:
XP Power
Manufacturer Part No:
JHM1524D12
Enrgtech Part No:
ET100289081
Warranty:
Manufacturer
$ 774.52 $ 774.52
Checking for live stock
Output Voltage:
±12V dc
Input Voltage Range:
18 → 36 V dc
Power Rating:
15W
Input Voltage Nominal:
24 V dc
Output Current:
±625mA
Mounting Type:
Through Hole
Isolated:
Yes
Number of Outputs:
2
Package:
1 x 1.6 in
Isolation Voltage:
4kV ac
Width:
25.4mm
Depth:
10.2mm
Length:
40.6mm
Series:
JHM15
Railway Approved:
No
Load Regulation:
±1 (10 → 100% Load) %, ±2 (0 → 10% Load) %
Maximum Temperature:
+80°C
Standards Met:
ANSI/AAMI ES60601-1, CSA-22.2 No.60601-1:2008, EN 61204-3, EN55011, EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC60601-1, IEC60601-1-2, MIL-HDBK-217F
Minimum Temperature:
-40°C
Medical Approved:
Yes
pdf icon
0900766b8151921e.pdf(datasheets)
