Model Number:

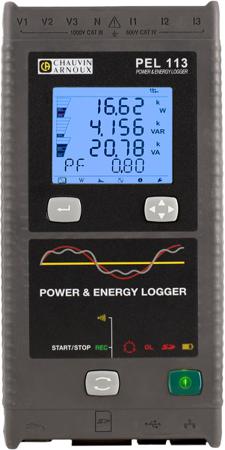

PEL113
Number of Input Channels:
3V / 3I
Measurement Parameters:
Current, Energy, Frequency, Harmonics, Power, Voltage
Sensor Type:
Current, Voltage Sensors
Interface Type:
Ethernet, IRD Server, USB, Wifi
Data Logger Type:
Power & Energy
Maximum Voltage Measurement:
1000V
Power Source:
Battery and Self-powered by Phase
IP Rating:
IP54
Minimum Operating Temperature:
0°C
Maximum Operating Temperature:
+50°C
Maximum Current Measurement:
10 000A
Display Type:
Quadruple Digital Display LCD
Battery Type:
Rechargeable NiMH battery
Best Voltage Measurement Accuracy:
± 0.2% R ± 0.2 V
Alarm:
Yes
Number of Readings Per Channel:
5 readings / s
Dimensions:
265 x 125 x 37mm
Model Number p:
PEL113
Current Measurement Resolution:
1 mA
Best Current Measurement Accuracy:
± 0,3%
Includes:
A PEL 113 is delivered with : 1 carrying bag, 4 voltage cables, 4 crocodile clips, 1 set of inserts/ rings, 1 SD card, 1 SD Card-USB adapter, 1 USB cable, PEL TRANSFER PC software & User’s Manual downloadable from our website, 1 Quick Start Guide.
