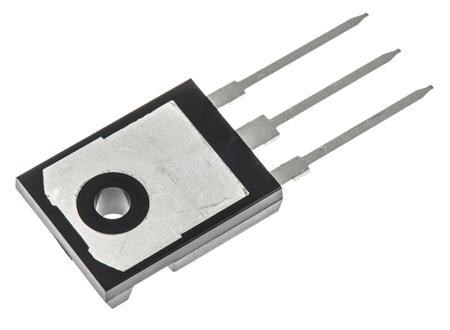

tip147g onsemi TIP147G PNP Darlington Transistor, 10 A 100 V HFE:500, 3-Pin TO-247
tip147g onsemi TIP147G PNP Darlington Transistor, 10 A 100 V HFE:500, 3-Pin TO-247
tip147g onsemi TIP147G PNP Darlington Transistor, 10 A 100 V HFE:500, 3-Pin TO-247

onsemi TIP147G PNP Darlington Transistor, 10 A 100 V HFE:500, 3-Pin TO-247

onsemi TIP147G PNP Darlington Transistor, 10 A 100 V HFE:500, 3-Pin TO-247

Manufacturer:
onsemi
Manufacturer Part No:
TIP147G
Enrgtech Part No:
ET21465411
Warranty:
Manufacturer
$ 3.59 $ 3.59
Checking for live stock
Transistor Type:
PNP
Maximum Continuous Collector Current:
10 A
Maximum Collector Emitter Voltage:
100 V
Maximum Emitter Base Voltage:
5 V
Package Type:
TO-247
Mounting Type:
Through Hole
Pin Count:
3
Transistor Configuration:
Single
Number of Elements per Chip:
1
Minimum DC Current Gain:
500
Maximum Base Emitter Saturation Voltage:
3.5 V
Maximum Collector Base Voltage:
100 V
Maximum Collector Emitter Saturation Voltage:
3 V
Maximum Collector Cut-off Current:
2mA
Length:
21.08mm
Height:
5.3mm
Width:
16.26mm
Dimensions:
21.08 x 16.26 x 5.3mm
Maximum Operating Temperature:
+150 °C
Minimum Operating Temperature:
-65 °C
Maximum Power Dissipation:
125 W
pdf icon
0900766b8157624b.pdf(datasheets)
pdf icon
0900766b81644fae.pdf(datasheets)
Explore Darlington pairs for high-gain switching needs. Enrgtech offers power transistors ideal for amplifiers, controllers, and voltage regulation circuits.
