Absolute Maximum AC Current Measurement:
600A ac
Absolute Maximum DC Current Measurement:
600A dc
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
6kΩ
Model Number:

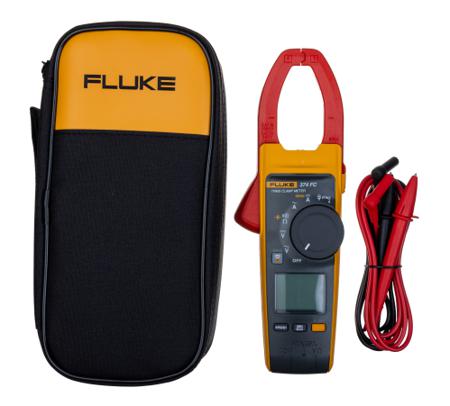

374 FC
Moulded/Fold Flat:
Bluetooth
AC Current Measurement Resolution:
100mA
DC Current Measurement Resolution:
100mA
Best DC Current Accuracy:
±(2% rdg +5 Digits)
Clamp Meter Type:
AC/DC Clamp Meter
Best AC Current Accuracy:
±(2% rdg +5 Digits)
Best AC Voltage Accuracy:
±(1.5% rdg +5 Digits)
Best DC Voltage Accuracy:
±(1% rdg +5 Digits)
True RMS:
Yes
Jaw Capacity Busbars:
34mm
Functions Measured:
AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature
Width:
85mm
Power Source:
Battery
Dimensions:
246 x 83 x 43mm
Length:
249mm
DC Voltage Measurement Resolution:
100mV
Weight:
395g
Safety Category Level:
CAT III, CAT IV
Resistance Measurement Resolution:
100mΩ
Safety Category:
CAT III 1000 V, CAT IV 600V
Best Resistance Measurement Accuracy:
1% ±5 Digits
Battery Type:
2 AA, IEC LR6, NEDA 15A
AC Voltage Measurement Range:
1000 V
AC Current Measurement Range:
600 A
Minimum Operating Temperature:
-10°C
Height:
45mm
Display Type:
Backlit LCD
Maximum Operating Temperature:
+50°C
Safety Category Voltage:
600 V, 1000V
AC Voltage Measurement Resolution:
100mV
