Product Type:

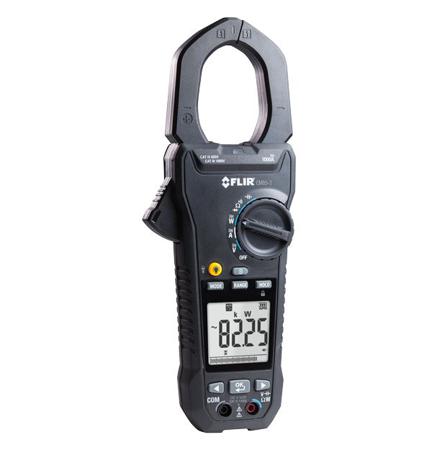

Clamp Meter
Maximum DC Current Measurement:
999.9A
Maximum AC Voltage Measurement:
999.9V ac
Maximum DC Voltage Measurement:
999.9V
Input Connector:
99.99kΩ
Model Number:
CM85-2
DC Current Resolution:
99.99A
AC Voltage Resolution:
0.05V ac
DC Voltage Resolution:
99.99 V
AC Current Accuracy:
±2.5 % + 5 Digits
AC Current Resolution:
0.1A
AC Voltage Accuracy:
±1 % rdg + 5 Digits
Minimum Operating Temperature:
0°C
DC Voltage Accuracy:
999.9 V, ±(0.7% + 2 digits), 99.99 V
Clamp Meter Type:
Power Clamp Meter
Maximum Operating Temperature:
50°C
Standards/Approvals:
UKCA, IEC 610102033:2012, IEC 610101:2010, CSAus, FCC, UL, CE, IEC 610102032:2012, IC
Weight:
0.65kg
Length:
276mm
Height:
50mm
Width:
101 mm
Functions Measured:
Frequency, Resistance, Voltage, Total Harmonic Distortion, Capacitance, Continuity, Current, Diode
True RMS:
Yes
Power Source:
1.5 V Battery
Safety Category Level:
Steady, Negative
Battery Life:
50h
Battery Type:
AAA Alkaline
Maximum AC Current Measurement:
999.9A
Safety Category Voltage:
1000V
