Chart Type:
Paperless
Number of Inputs:
12
Parameter Measured:
Current, Millivolt, Resistance, Temperature, Voltage
Maximum Temperature Measurement:
+50 °C
Cleanroom:
95%RH
Number of Outputs:
1
Maximum Current Measurement:
50mA
Maximum Operating Voltage:
24 V dc, 240 V ac
Input Connector:
0 ￫ 10000Ω
Maximum Voltage Measurement:
24V
Recorder Input Type:
Digital 24 V, Digital Volt Free, mA, mV, Resistance, RTD, Thermocouple, V

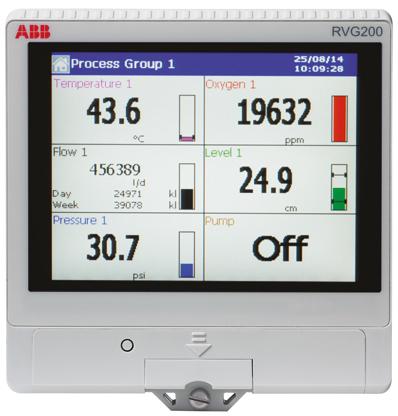

Model Number p:
RVG200
IP Rating:
IP66
Best Temperature Measurement Accuracy:
0.1 %
Length:
145mm
Power Source:
Mains
Height:
145mm
Best Current Measurement Accuracy:
0.1 %
Weight:
2kg
Width:
154.5mm
Minimum Operating Voltage:
100V ac
Best Resistance Measurement Accuracy:
0.1 %
Best Voltage Measurement Accuracy:
0.1 %
