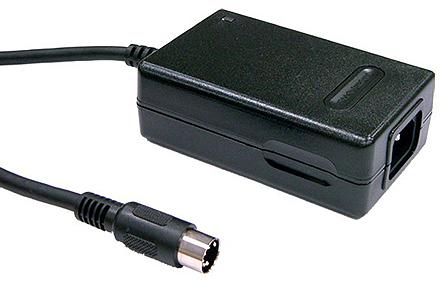

Adapter Type:
Power Brick Adapter
Output Voltage:
-5 V dc, 5 V dc, 12V dc
Input Voltage:
90 → 264V ac
Output Current:
(-5 V dc) 0.1 → 0.3 A, (12 V dc) 0.2 → 1.2 A, (5 V dc) 0.5 → 2.5A
Maximum Temperature:
+70°C
Output Connector:
4-Pin Power DIN
Input Connector:
IEC 320-C14
Number of Outputs:
3
Power Rating:
28.5W
Cable Length:
1530mm
Standards Met:
CB, CE, CSA 22.2, cULus Recognised, EISA 2007/DOE, EN 55022 Class B, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, FCC PART 15/CISP22 Class B, MIL-HDBK-217F, TUV Rheinland, UL 60950-1
Efficiency:
80%
MTBF:
620kh
Energy Efficiency Level:
VI
Depth:
36mm
Minimum Temperature:
-20°C
Width:
67mm
Series:
GP25A-T
Load Regulation:
±3 % @ -5 V dc, ±5 % @ 12 V dc, ±5 % @ 5V dc
Length:
107.5mm
Maximum Reset Active Time:
±1%
